HYPERSPECTRAL

       IMAGERS

Headwall MV-X Hyperspectral system

MV.X Hyperspectral System

the future of HSI!

HYPERSPECTRAL IMAGING SYSTEM – NOT JUST A CAMERA

Classify and detect

Fast onboard, embedded processing for real-time spectral classification

Industry Ready

GenICam-compliant GigE interface with an IP67-rated housing

VNIR

Built for challenging VNIR (400-1000nm) machine-vision applications on the processing line

Software

Flexible yet robust and simple workflow

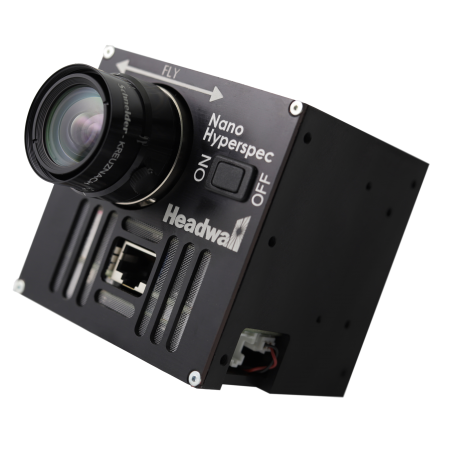

Nano-Hyperspec®

Nano-Hyperspec®

Typical applications: airborne & ground remote sensing

Classify and detect

270 spectral bands 640 spatial bands FWHM slit image 6nm Max frame rate as high as 350Hz

Line Scan

 line-scanning  hyperspectral cameras (sometimes called  pushbroom)

Spectral Ranges

Built for challenging VNIR (400-1000nm)

Research Grade

Professional airborne performance• Research-grade hyperspectral data

Micro-Hyperspec®

Micro-Hyperspec®

Typical applications: airborne, satellite, and ground remote sensing, advanced machine vision, lab

Spectral Ranges

VNIR (400-1000nm)
NIR (900-1700nm)
Extended VNIR (550-1700nm)
SWIR (900-2500nm)

Line Scan

 line-scanning  hyperspectral cameras (sometimes called  pushbroom)

Specification

Up to 369 spectral bands*•Up to 1,600 spatial bands*

Research Grade

Professional airborne performance• Research-grade hyperspectral data

Co-Aligned VNIR-SWIR

Co-Aligned VNIR-SWIR

Typical applications: Airborne and ground remote sensing that require coverage between 400-2500nm

Spectral Ranges

Spectral range: VNIR + SWIR (400-2500nm)

Line Scan

 line-scanning  hyperspectral cameras (sometimes called  pushbroom)

Specification

Spectral pixels: 270 VNIR 267 SWIR
Spatial pixels: 640 <6nm
VNIR, 8nm SWIR
Max frame rate: as high as 350Hz VNIR; 200Hz SWIR

Research Grade

Professional airborne performance• Research-grade hyperspectral data

High-Resolution Fluorescence

High-Resolution Fluorescence

Typical applications: Remote sensing, particularly environmental monitoring where high-resolution chlorophyll fluorescence measurements are needed.

Spectral Ranges

Spectral range: 670-780nm Spectral resolution (FWHM): 0.1 - 0.2nm SNR 120:1 unbinned

Line Scan

 line-scanning  hyperspectral cameras (sometimes called  pushbroom)

Specification

Spectral bands: 2,160
Spatial pixels: 1,600

Research Grade

Professional airborne performance• Research-grade hyperspectral data

Hyperspec UV-VIS

Hyperspec UV-VIS

Typical applications: process monitoring, Lab, scanning kits

Spectral Ranges

250-500nm

Line Scan

 line-scanning  hyperspectral cameras (sometimes called  pushbroom)

Specification

Spectral bands: 409
Spatial pixels: 1,100
Frame rate: 30-50Hz
Spatial pixels: 1,600

Research Grade

Professional airborne performance• Research-grade hyperspectral data

Hyperspec® MV

Hyperspec® MV

Typical applications: Advanced machine vision (food inspection & grading, recycling)

Spectral Ranges

400-1000nm

Line Scan

 line-scanning  hyperspectral cameras (sometimes called  pushbroom)

Specification

270 spectral bands
640 spatial pixels
Max frame rate: as high as 485Hz

Research Grade

Professional airborne performance• Research-grade hyperspectral data
